VERTEX V1 Linear Switches
All three injection-molded parts of the V One feature new formulas that had not previously appeared in the material selection range of all JWICK's original switch products. Further, PA66 is used as the main material for both the top and bottom housings, with the intent of targeting a desired sound and performance.
Spherical-point Shaped Stem Bottom
Single-point contact of the stem gives a cleaner and more concentrated sound profile.
With our enhancement of mold design and precise control of the parameters, we eliminated potential stem shaking when bottom-out.
V One uses a custom-made spring with a thicker outer diameter (4.10mm), without metal surface treatments (generally referred to as gold plating). This is not because the cost of gold plating is high, but because gold plating or other surface treatments will directly affect the pressure difference value of the spring preset, which will greatly affect the consistent performance of the plan.
Color Selection
V One also follows CHERRY’s color matching logic, using stem color to distinguish the type of switches

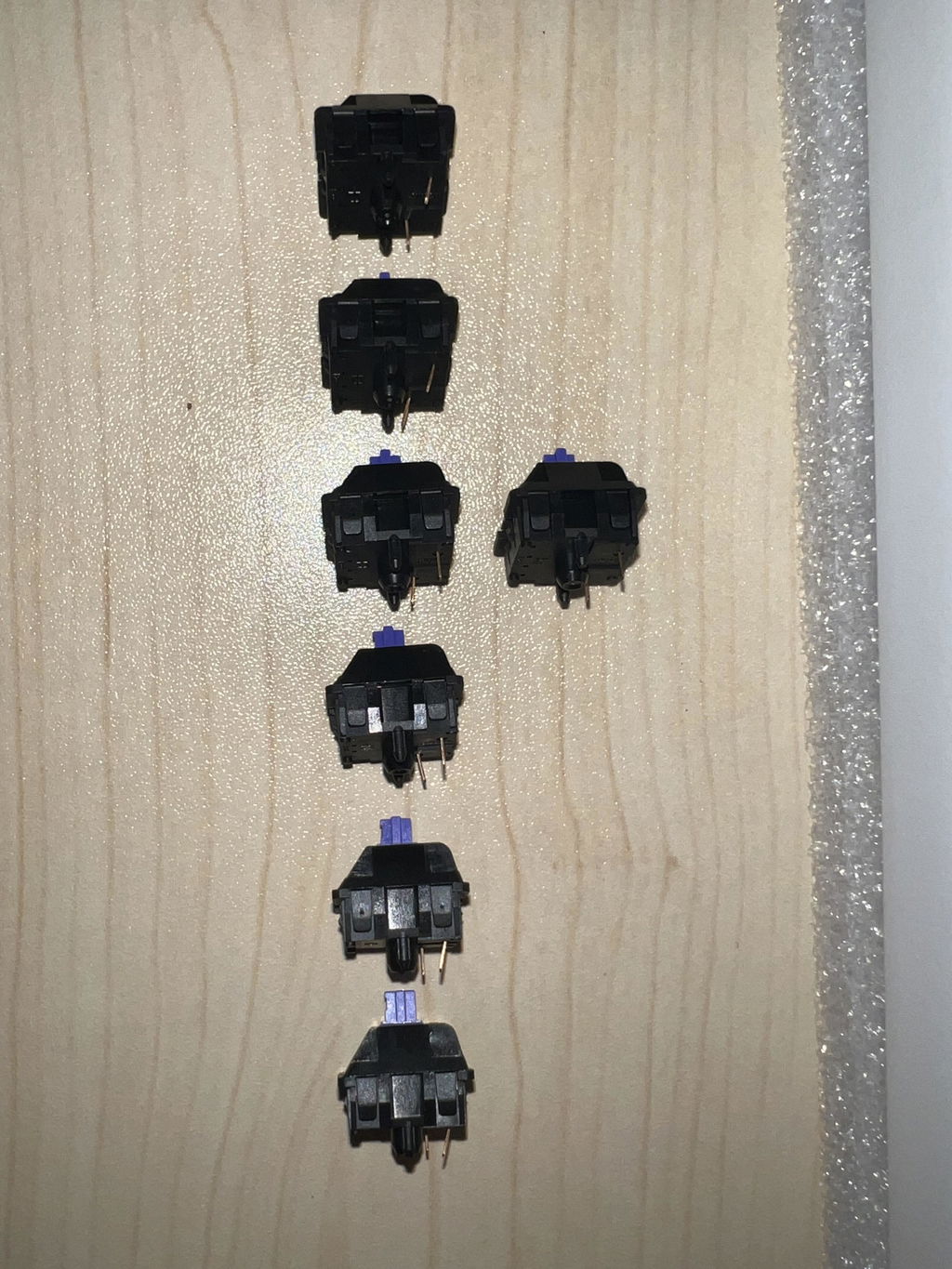

Stem: Periwinkle Blue
Housing: Black
General |
Brand: VERTEX Type: Mechanical Switch Model: V1 |
Specification |
Switch: VERTEX V1 Switch Switch type: MX-stem 5-pin Linear switch Pre-lubed Total travel distance: 4.0+0.3mm Pre-travel distance: initial force: 35gf(min) Operation force: 50+10gf Bottom-out force: 62+10gf Switch Spring: 15mm non-gold plated stainless steel2 |
Weight & Size |
Product Weight: 0.3kg Package Weight: 0.3kg Product Size(L x W x H): 1.5*1.5*1.8cm |
Package Contents | 1 x VERTEX V1 Switch Set (90Pcs Switches) |
