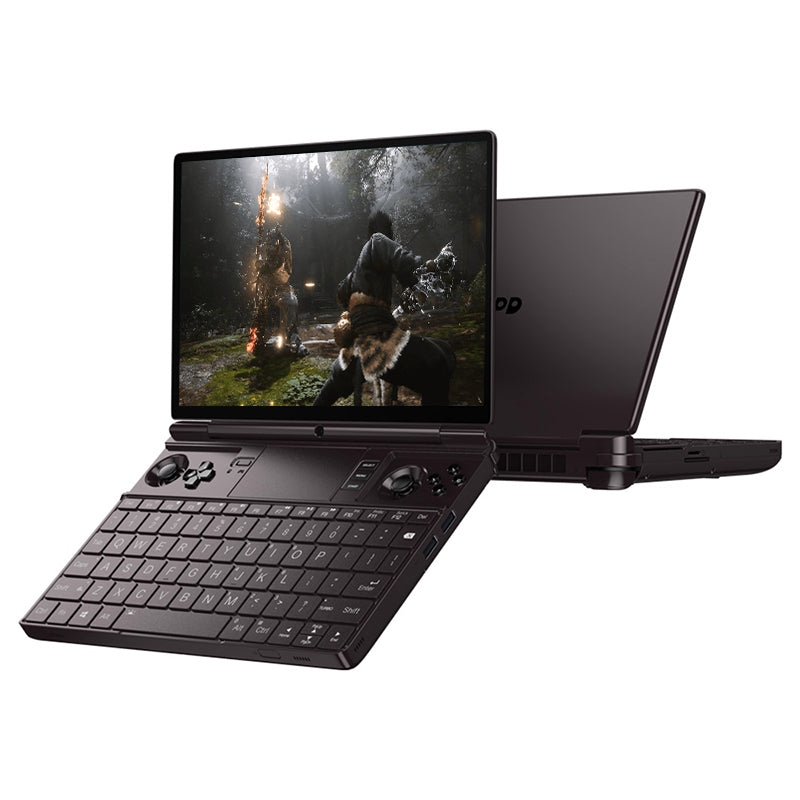

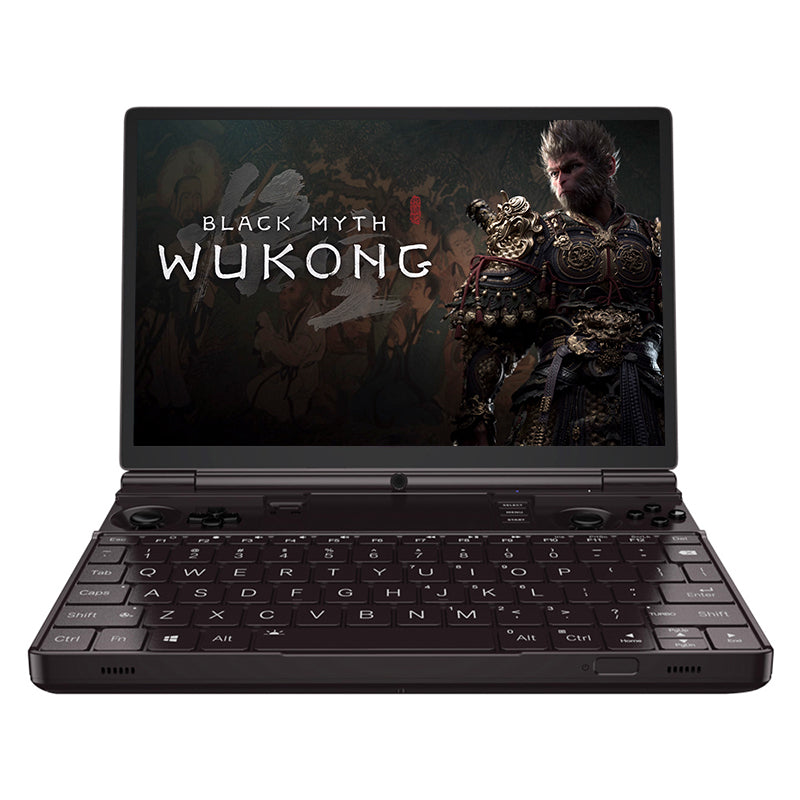

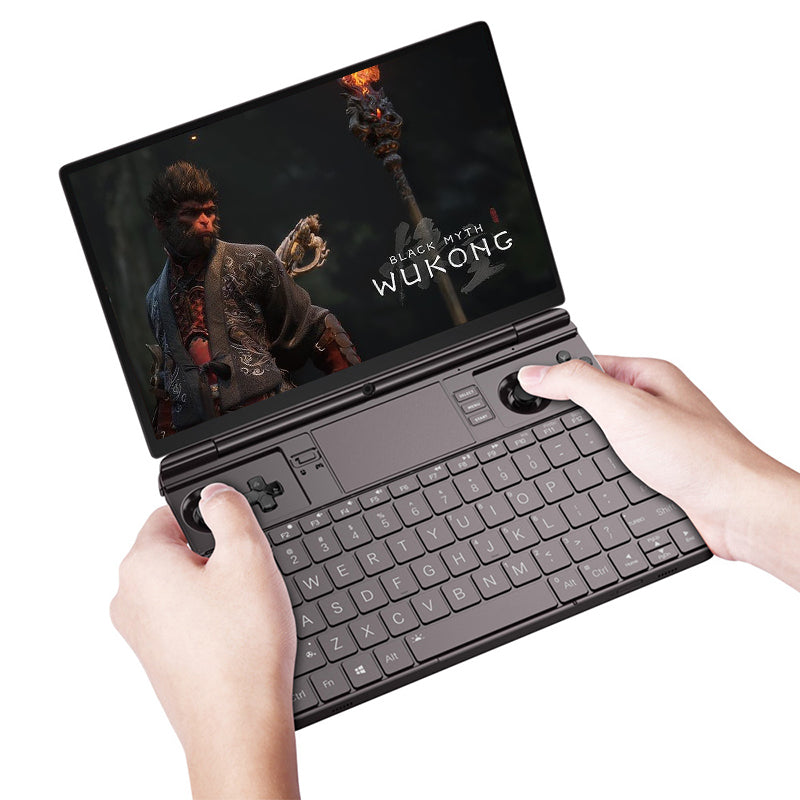

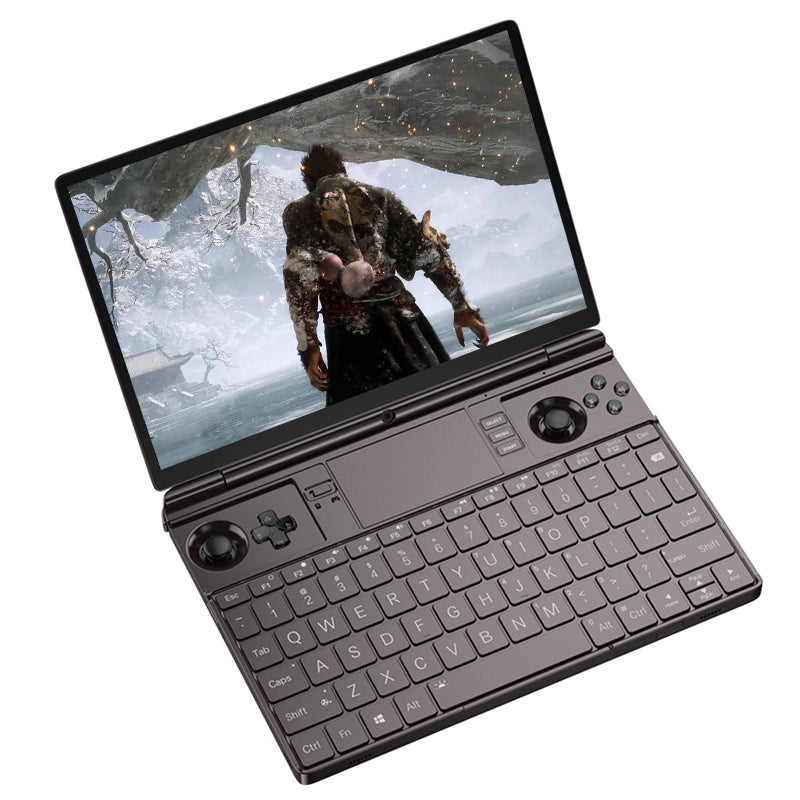

GPD WIN Max 2 2024 Handheld Gaming PC
AMD Ryzen 7 8840U
At the core of the GPD WIN MAX 2 2024 mobile gaming PC is the AMD Ryzen 7 8840U processor, delivering peak performance up to 5.1GHz on 8 cores and 16 threads. Combined with the AMD Radeon 780M GPU, the device promises a smooth, lag-free experience whether you're browsing complex spreadsheets or playing the latest AAA games.
Large Storage
GPD WIN MAX 2 comes with up to 32GB of LPDDR5X RAM and 2TB M.2 NVME SSD, ensuring fast game load times and ample storage for all your professional and gaming needs. This combination not only speeds up your workflow but also ensures you can enjoy your favorite games with just a click.
OcuLink Port
The inclusion of an OcuLink port further enhances its capabilities, allowing for connection to the GPD G1 (2024) eGPU docking station for an even more robust graphics performance.
Designed for Gameplay
GPD WIN Max 2 2024 features an ergonomic design with QWERTY keyboard, gaming controls, and precision touchpad to ensure comfort during extended use. Its powerful connectivity options, including Wi-Fi 6 and Bluetooth 5.2, integrate seamlessly into any environment, whether streaming, gaming or professional tasks.
| General |
Brand: GPD |
| Display | Characteristic: Full Screen Touch Panel: Support, 10-point Touch Control, Supported (Requires Separate Purchase), Active Pen With 4096-level Pressure Sensitivity, Original Handwriting, Compatible With Surface Pen Screen Type: Corning Gorilla Glass 5, IPS Technology Screen Size: 10.1 Inches Aspect Ratio: 16:10 Screen Resolution: Default: 1920×1200, Maximum: 2560×1600 Pixels Per Inch: 299 PPI |
| CPU | Model: AMD Ryzen 7 8840U Cores/Threads: 8C/16T Base Clock: 3.3 GHz Max. Boost Clock: 5.1 GHz AI Performance: 16 TOPS Total Processor Performance: 38 TOPS Total Cache: 24.5 MB Architecture: Zen 4 (Hawk Point) Process Size: 4nm TDP: 15W-30W |
| GPU | Processor Graphics: AMD Radeon 780M Graphics Frequency: 2700 MHz Compute Units: 12CU Shading Units: 768 Floating-point Performance: 17.82 TFlops (FP16), 8.92 TFlops (FP32), 556.8 GFlops (FP64) Pixel Rate: 92.80 GPixel/s Texture Rate: 139.2 GTexel/s HDMI: 7680 x 4320 @60Hz DP: 7680 x 4320 @60Hz DirectX: DX12 Ultimate |
| Storage | Memory: 64GB Memory Types: LPDDR5x 7500 MT/s Memory Dual Channel: Quad 32-bit Channels Hard Disk Type: M.2 SSD Hard Disk Interface: M.2 (Socket 3) x 1 Supported Specifications: M.2 NVMe 2280 x 1 Storage: M.2 NVMe 2280 SSD 2TB (PCIe Gen4) Bus Specification: PCIe 4.0 x 4 Transfer Protocol: NVMe 1.3/1.4 |
| Multimedia Support | Audio System: Built-in audio chip, DTS audio Loudspeakers: Built-in 4 Super Linear Speakers Camera: Built-in Camera: 2 Million Pixels, Maximum Resolution: 1612×1212, Super Wide-angle, High Refresh Rate Microphone: Built-In Microphone |
| Network | 4G LTE Module: 2G: GSM900/1800MHz, 3G: WCDMA B1/B8, TD-SCDMA B34/B39, CDMA BC0, 4G: LTE TDD B34/B38/B39/B40/B41, LTE FDD B1/B3/B5/B8 Wi-Fi 6: IEEE 802.11 a/b/g/n/ac/ax, Support 2.4G/5G Dual Frequency Band, Dual Channel Maximum Transmission Rate 2402Mbps MU-MIMO: Supports Bluetooth: 5.2 |
| I/O Interface | Video/Data/Charging: 1 x USB4 (40Gbps), 1 x USB 3.2 Gen 2 Type-C (10Gbps), 1 x USB 3.2 Gen 2 Type-A (10Gbps), 1 x Oculink (SFF-8612) Female Port. 1 x HDMI 2.1 microSD Slot: SD 3.0 Protocol, Bus interface: UHS-I, Video Speed Class: V30, Application Performance Class: A2, Read: 160MB/s, Write: 120MB/s, Compatible: microSDHC/microSDXC/microSDUC (microSD Card Slot and SD Card Slot are Mutually Exclusive. Only One Slot Can be Used at a Time. Inserting a Card in One Slot Will Make The Other Slot Invalid) SD Slot: SD 4.0 protocol, Bus interface: UHS-II, Video Speed Class: V90, Read 312MB/s, Write: 312MB/s, Compatible: SDHC /SDXC/SDUC Audio Port: 1 x 3.5mm Headphone/Microphone Combo Jack, Compatible with Apple Headphones (US version) BIOS Reset Port: Supports |
| I/O Device | Power Switch: Power Button with A Fingerprint Sensor Keyboard: QWERTY Keyboard Design, Backlight (2-level Brightness Control) Indicator Lamp: Charging Indicator, Running Indicator, CapsLook Indicator, Fan Switch Indicator TouchPad: Microsoft Precision TouchPad (PTP) Mouse: The Joystick Simulates A Mouse, Requires Switching The Mode Handle/Mouse Joystick: Hall Sensor Sticks, Stepless, Super Linear, No Dead Zone, Sink-in Design, Native Support For Down Pressure Sensitive L3 / R3 Game Accessories Buttons: Analog Triggers Game Function Buttons: Double Silk-printed Legends (ABXY, △○×□, Select, Start, Xbox (Menu)) D-Pad: Siamese Arrow Keys Handle Vibration: Double Vibration Motor Sensor: 6-axis Gyroscope Other Keys: Handle/Mouse Switch Button, 2 Custom Physical Buttons |
| Battery | Battery Type: Li-polymer Battery Capacity: 67Wh Battery Life: 3 Hours Of Heavy Use, 6-8 Hours Of Moderate Use, 14 Hours Of Light Use, Depending On The Specific Environment Of Use |
| Weight & Size | Product Weight: 1kg Package Weight: 1.8kg Product Size(L x W x H): 22.7 x 16 x 2.3 cm Package Size(L x W x H): 26.4 x 19.9 x 7.2cm |
| Package Contents |
1 x GPD WIN Max 2 (2024) |
