AOOSTAR N1 Pro Mini PC Intel N150: Compact Power
The AOOSTAR N1 Pro Mini PC is a powerful yet compact solution for daily computing, featuring an Intel N150 processor, 12GB LPDDR5 RAM, expandable storage, dual 2.5G LAN, and triple 4K display support. With stable wireless connectivity and ultra-fast networking, it’s an ideal choice for work and entertainment.
Key Features:
✔ Intel N150 Processor – Smooth performance for web browsing, media streaming, and office tasks.
✔ 12GB LPDDR5 RAM – Fast and efficient memory for multitasking (non-upgradable).
✔ Up to 1TB ROM – Ample storage for essential applications (limited expansion options).
✔ Dual 2.5GbE Ethernet Ports – High-speed networking for advanced connectivity.
✔ Multiple Display Support – HDMI, USB-C Alt DP, and DisplayPort for triple-screen setups.
✔ USB 3.2 Ports – Seamless connection for peripherals and accessories.
✔ Compact & VESA-Mountable Design – Space-saving and easy to integrate into any setup.
✔ Wi-Fi 5 & Bluetooth – Wireless connectivity for added convenience.
Performance & Efficiency
Powered by the Intel N150 processor, the AOOSTAR N1 Pro delivers reliable performance for everyday tasks such as web browsing, document editing, and media streaming. Its PassMark CPU score of 5455 highlights its capability in handling standard workloads efficiently.
Storage & Memory

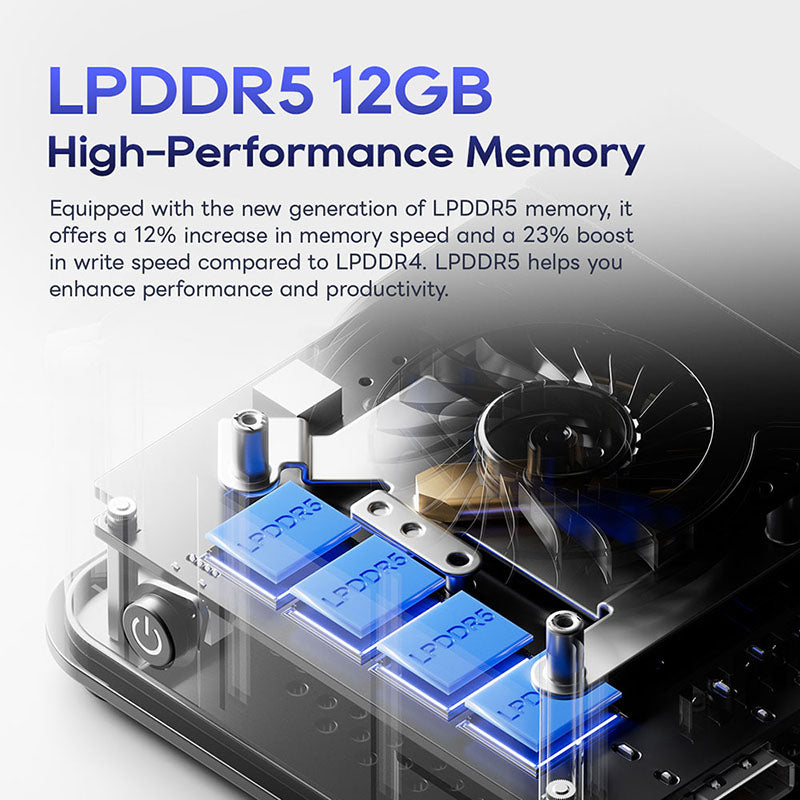

This mini PC features 12GB LPDDR5 RAM, ensuring smooth multitasking. However, the RAM is soldered and cannot be upgraded. The 1TB ROM provides sufficient storage space for essential applications, though its smaller form factor may limit expansion options.
Advanced Connectivity
Designed for versatility, the AOOSTAR N1 Pro comes equipped with:
- Dual 2.5GbE Ethernet Ports – Ideal for high-speed networking and server applications.
- Multiple Display Support – Connect up to three screens via HDMI, USB-C Alt DP, and DisplayPort.
- USB 3.2 & USB-C Ports – Multiple high-speed connections for external devices.
- Wi-Fi 5 & Bluetooth – Wireless connectivity for added flexibility.
Compact & Practical Design

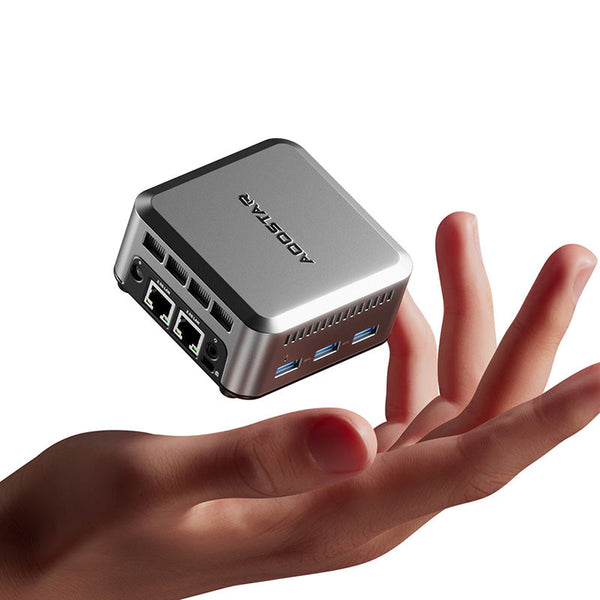

With its space-saving build, this mini PC can be mounted behind a monitor using the VESA mount or placed discreetly on a desk. The lightweight plastic casing ensures portability without compromising durability.
Ideal For:
✔ Home and Office Computing
✔ Network Servers and Mini NAS Setup
✔ Multi-Monitor Workstations
✔ Lightweight Media Streaming
Things to Consider:
- RAM is non-upgradable – Fixed at 12GB.
- Limited Storage Expansion – Uses M.2 2242 SSD, which may limit upgrade options.
- No Wi-Fi 6 Support – Comes with Wi-Fi 5 instead.
The AOOSTAR N1 Pro Mini PC is a powerful yet compact solution for users who need a versatile, space-saving computer with solid networking capabilities. While it’s not built for heavy computing tasks, its dual 2.5GbE ports, triple-display support, and compact form factor make it an excellent choice for workstations, home offices, and networking applications.
| General |
Brand: AOOSTAR Model: N1 Pro Type: Mini PC |
| Hardware |
OS: Windows 11 CPU: Intel N150 (4 cores, 4 threads, max 3.6GHz) GPU: Integrated graphics card 24EUS RAM: 12GB ROM: 256GB/512GB/1TB |
| Communication | WIFI: 5 Bluetooth: 4.2 LAN: 2.5Gbps |
| Interface |
Full-featured Type-C x 1 HDMI2.0 x 1 USB3.2 x 3 DP x 1 LAN (2.5G) x 2 Audio Jack x 1 |
| Power | Input: 12V/3A, 36W |
| Size & Weight | Product Weight: 0.3kg Package Weight: 0.6kg Product Size (L x W x H): 9.2 x 9.2 x 4.5cm |

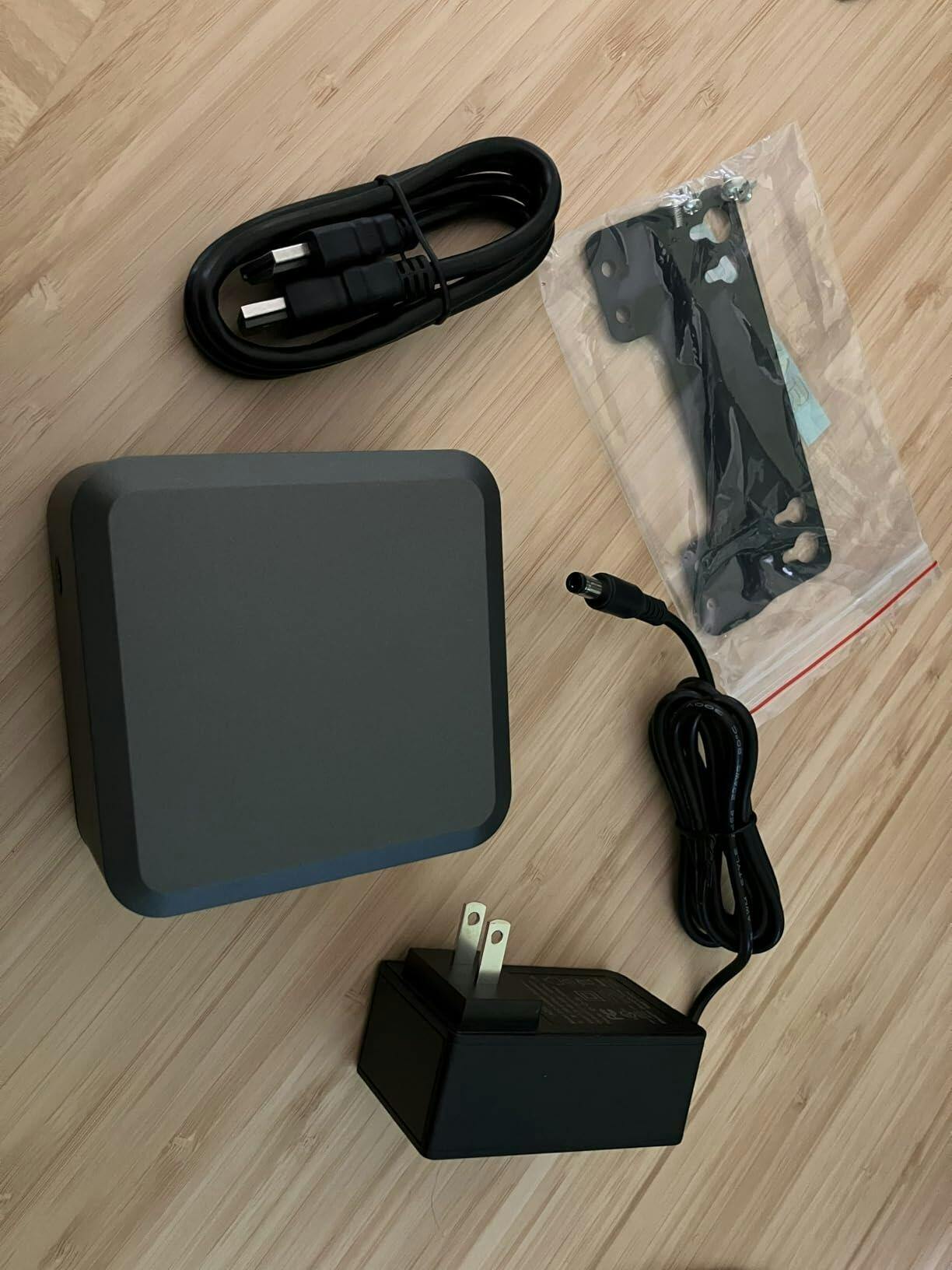

| Package Contents | 1 x Mini PC 1 x Power Supply 1 x User Manual |
Customer Reviews
This device is tiny & very portable. As a Desktop, it's very snappy with both Windows 11 and Linux - the latter being even snappier. The SSD inside can be upgraded - the RAM is stuck at 12GB. Idles at 9w & peaks at 19w under load. Lots of USB, dual 2.5G LAN, 3 options for Monitor connectivity along with WiFi & Bluetooth. Great for a headless home linux server or WFH desktop.
No issus with internal ssd installed.
The big "+" for me - work fine with sing USB-C - Power and display from/to dock-station. And power come via PoE-to-USB-C splitter for RJ45 network cable - no additional power outlet needed in my case
I’ve been running with the Aoostar N1 pro for a bit and have been mightily impressed by the performance of this little machine.

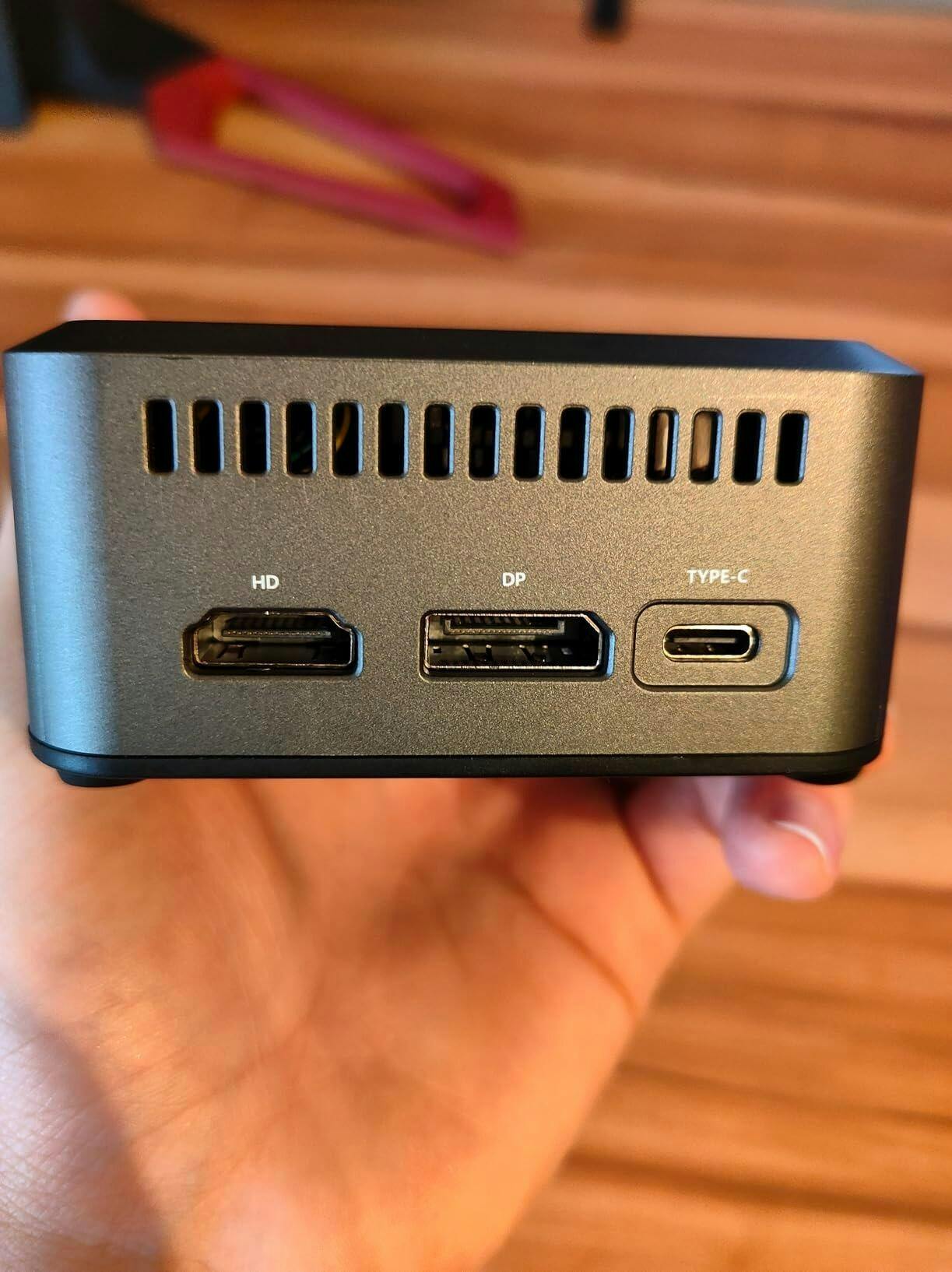

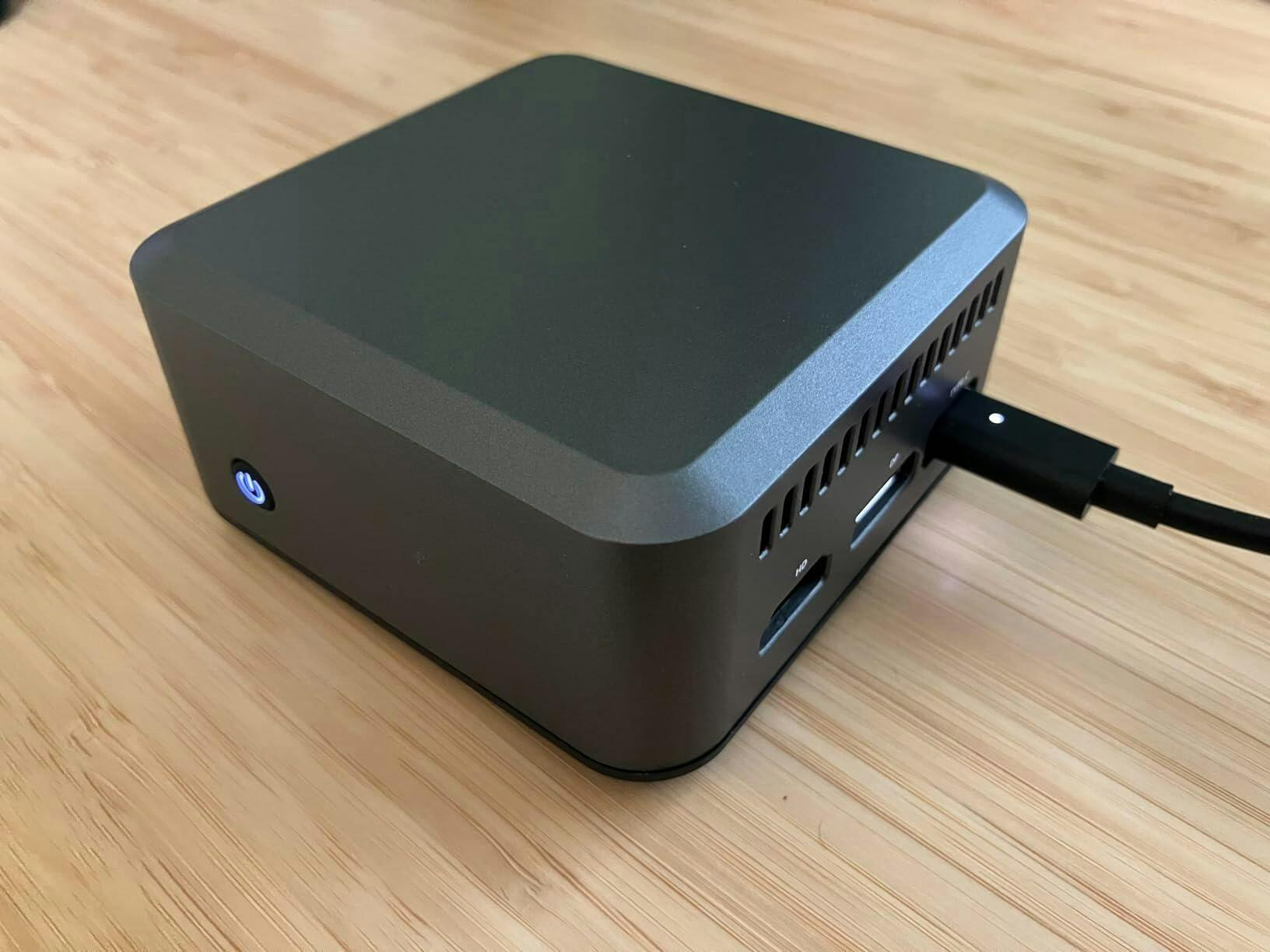

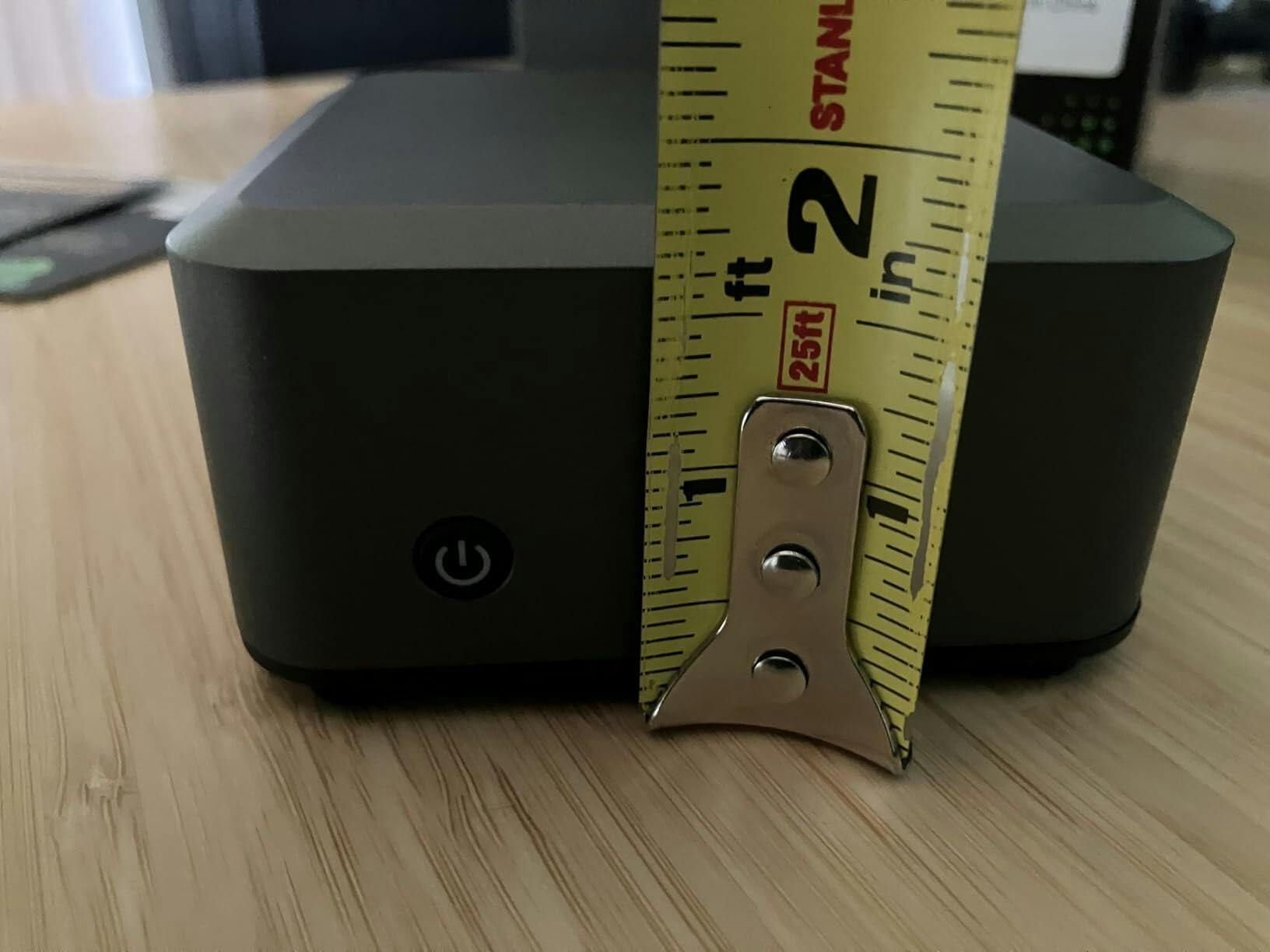

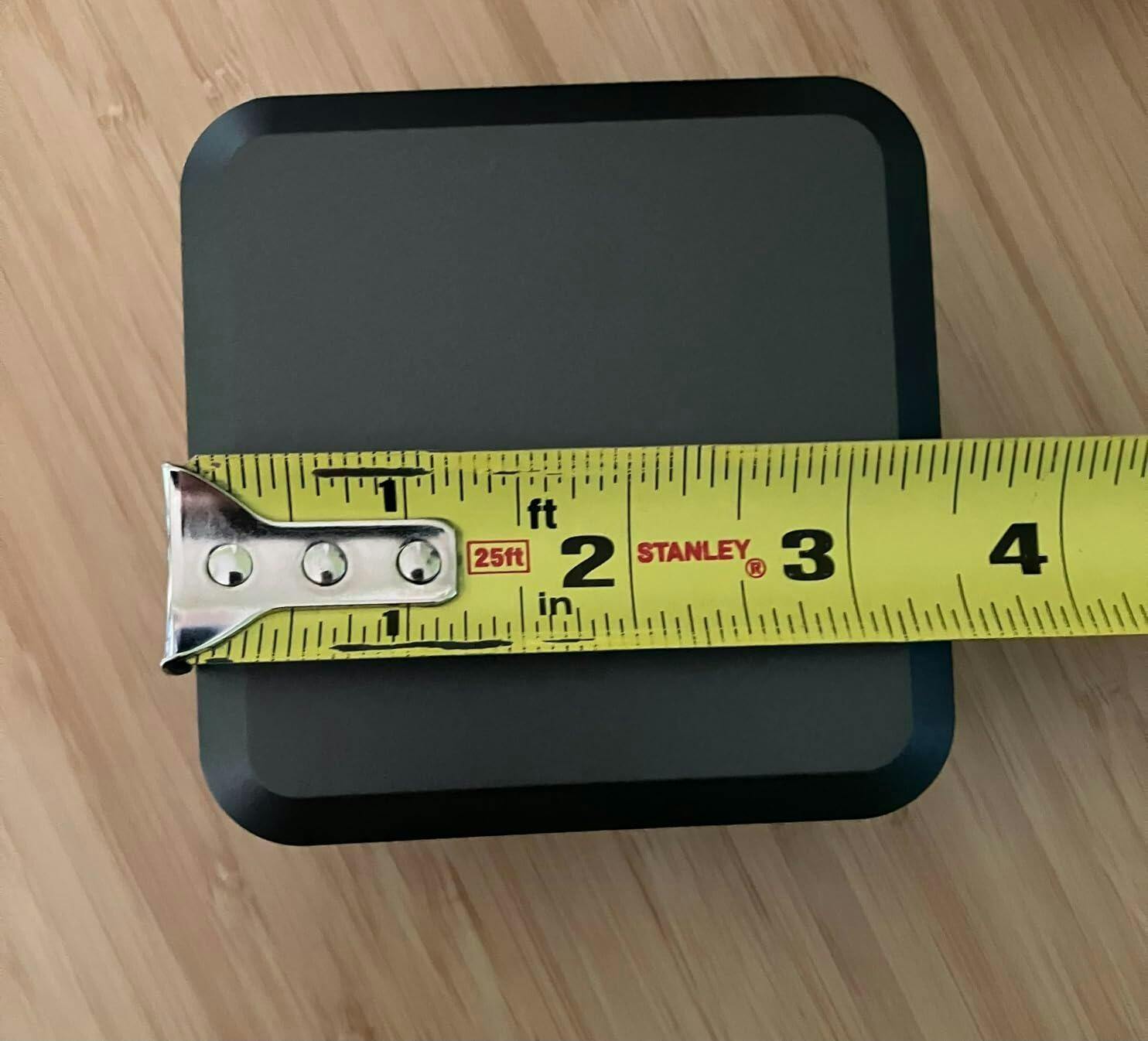

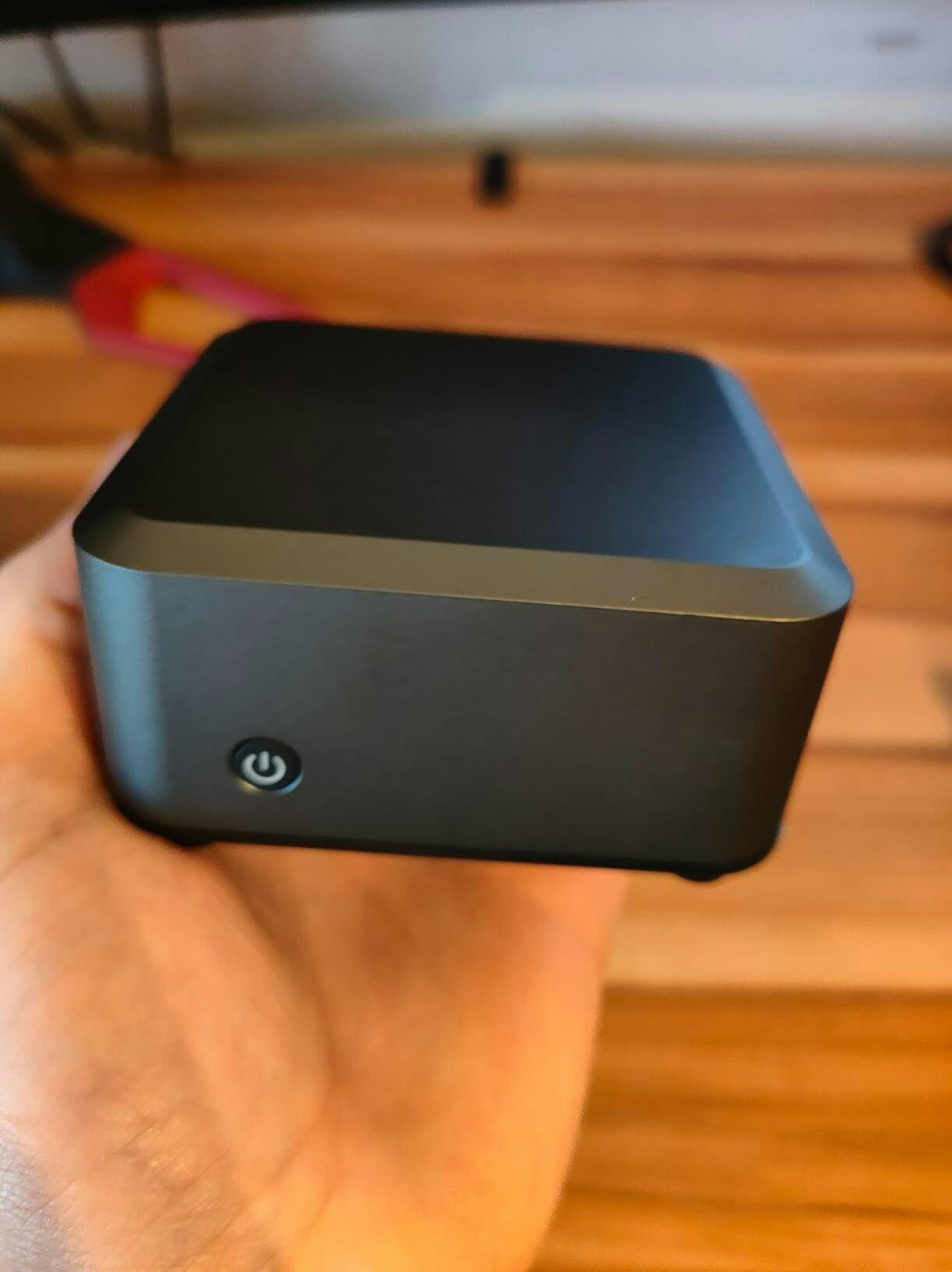

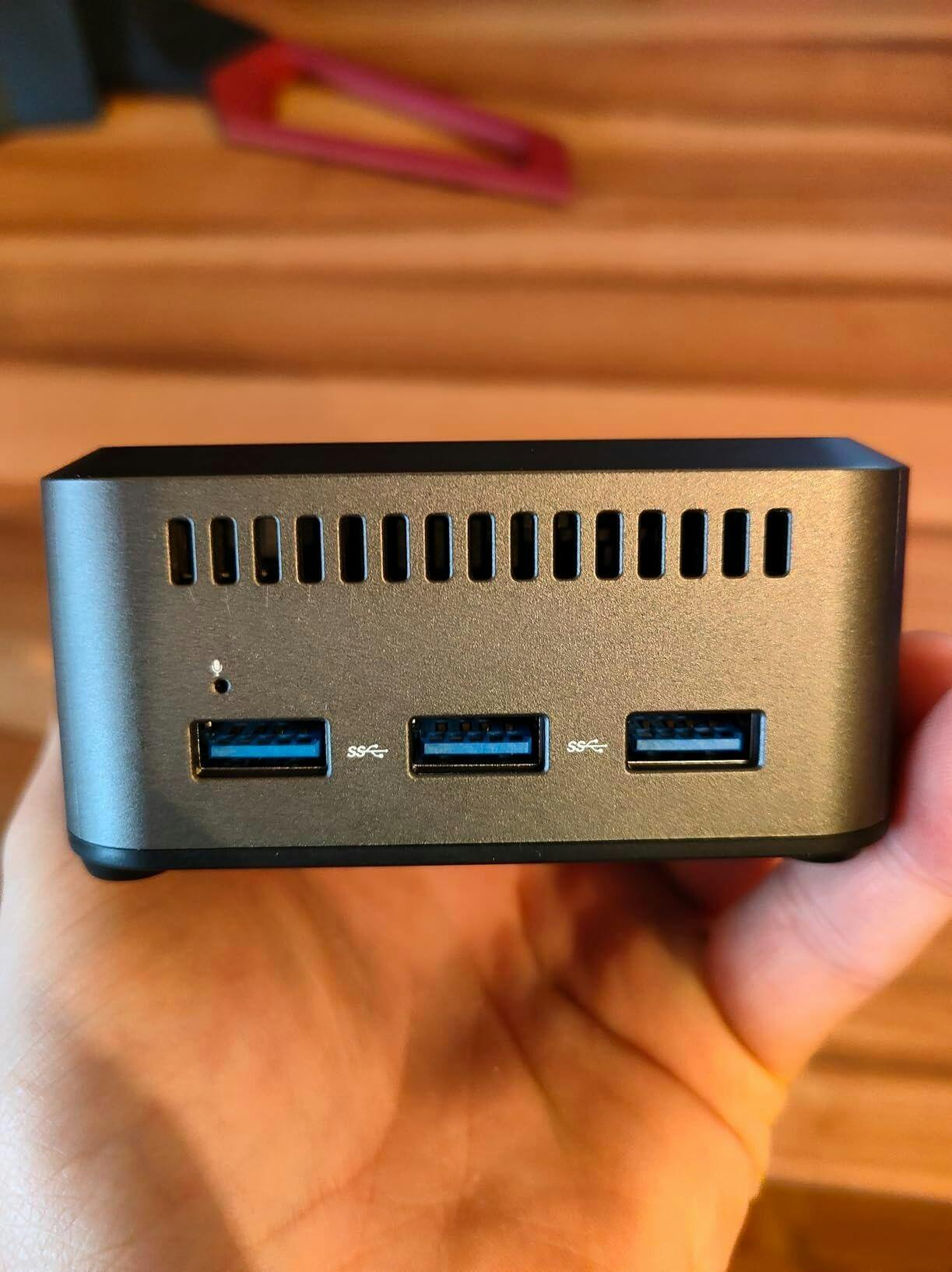

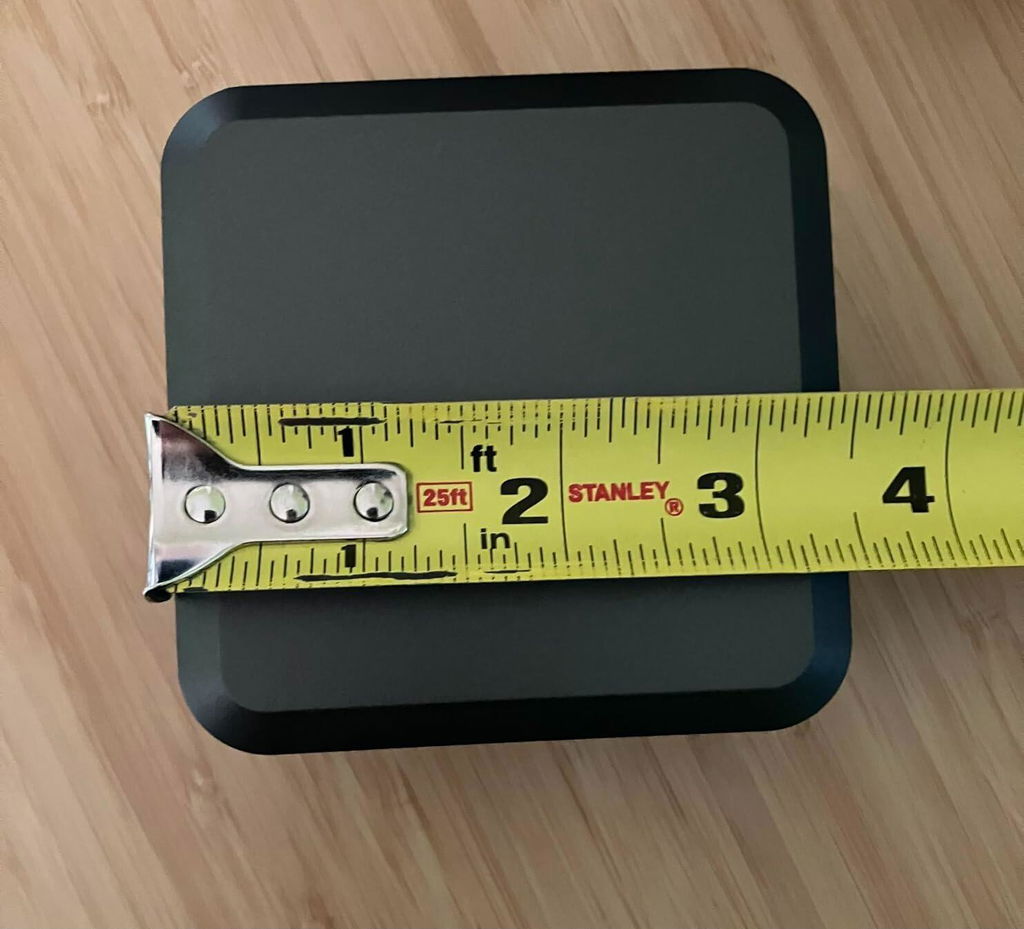

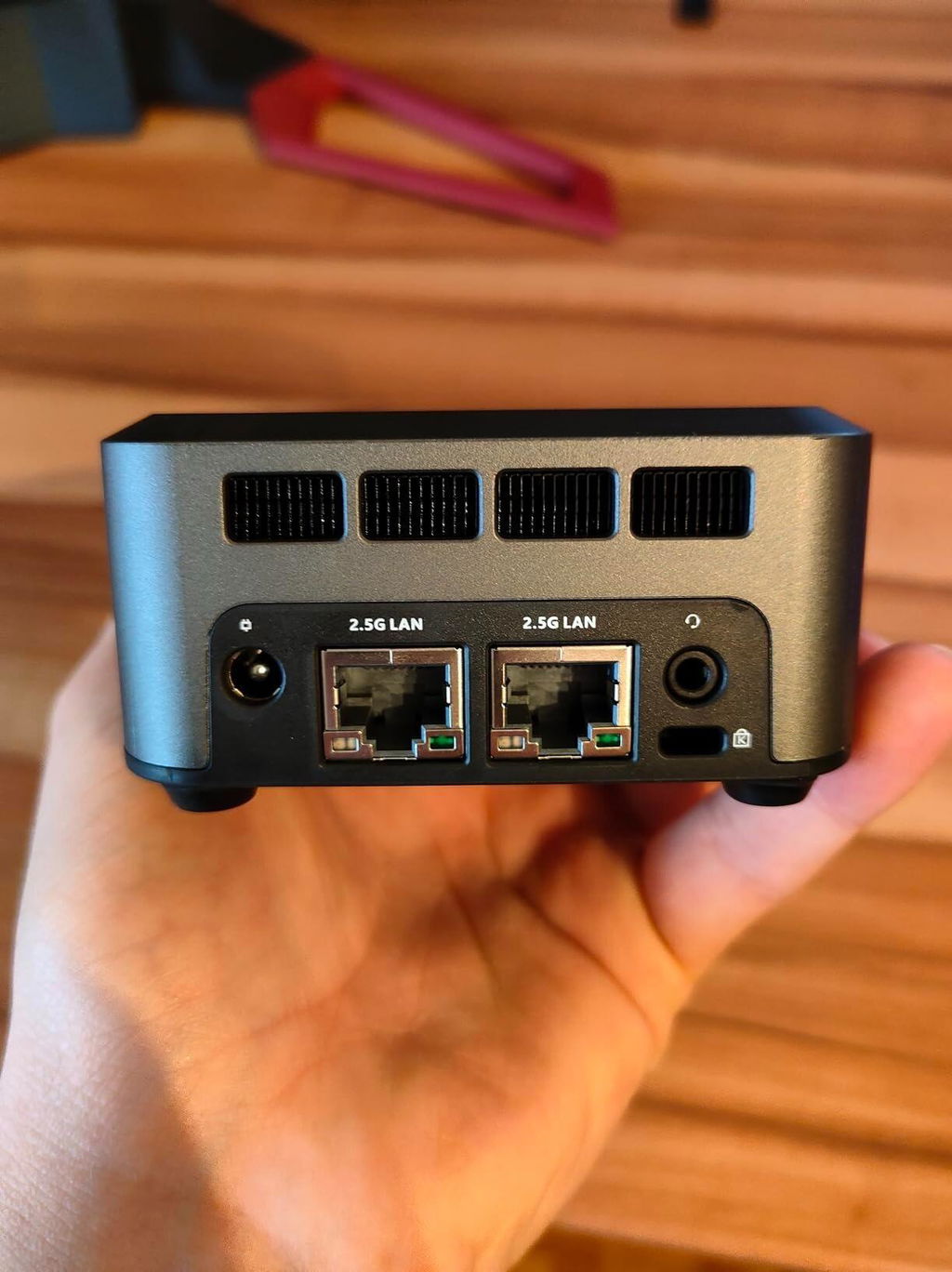

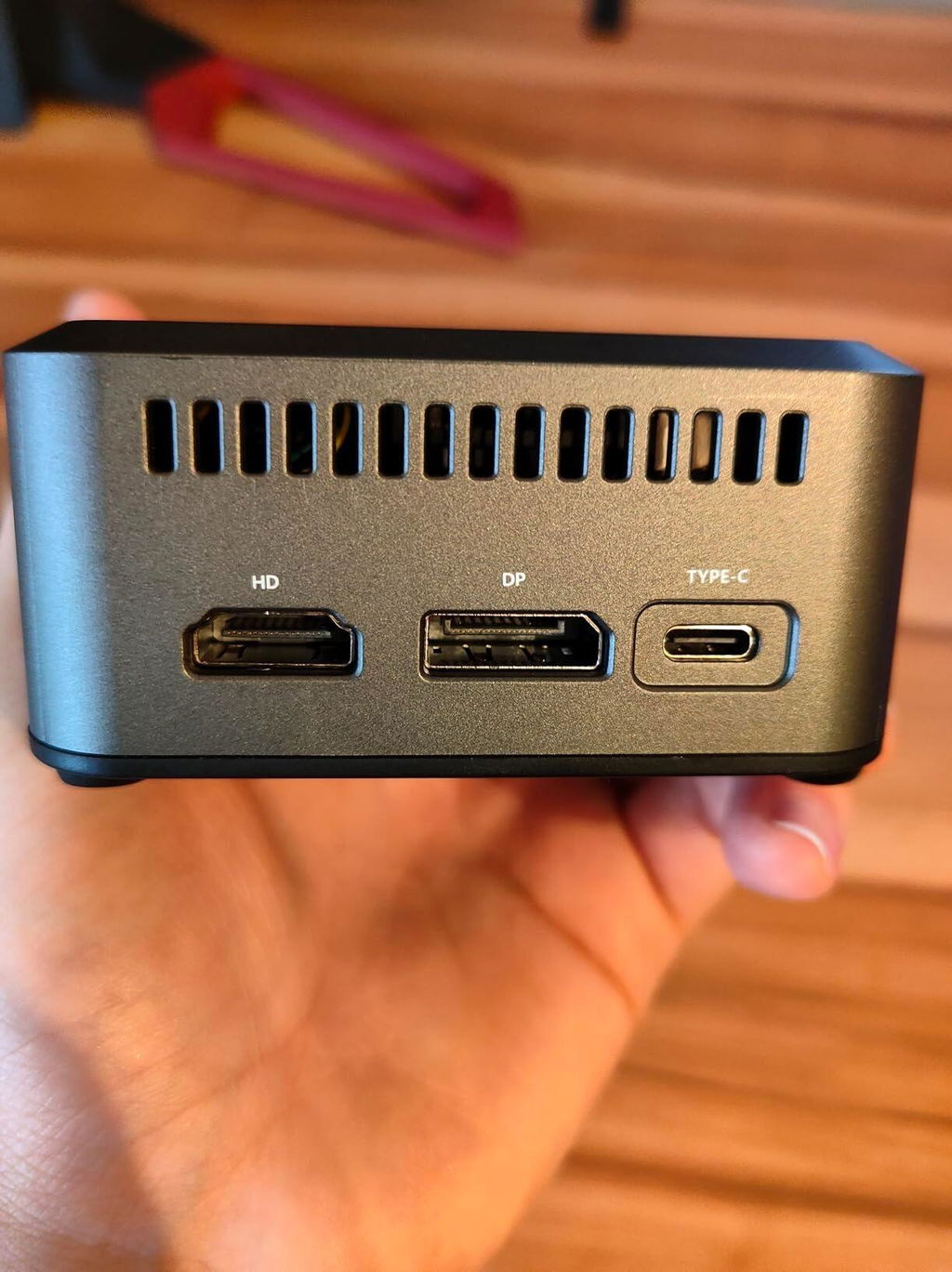

Starting with the form factor, the N1 pro is packed with I/O ports in a tiny footprint. It measures at approximately 3.5” x 3.5” x 2.75”. There are two intake vents on the sides and an exhaust port out the back (near the 2 x 2.5gbps ethernet ports). The ethernet ports are managed via an Intel I226-V ethernet controller. There is a headphone jack, a DC input jack, 3x USB-A ports, a display port, HDMI port, and a USB-C port. The USB-C port is capable of both powering the device and outputting a signal to a display. This is an especially nice feature given it leads to a very clean setup. I have mine plugged into a USB-C docking station so the only cord connected to the device is the USB-C cable.
The N1 pro is equipped with a Realtek RTL8821CE M.2 wifi card and an ASint AS606 512GB SATA SSD (for 512GB variant). I ran a CrystalDiskMark test on the SSD and got average results. I’ve never heard of ASint so I can’t vouch for its reliability, but it seems speedy enough. The boot time is rather quick, it does not hang at the bios. It is easy to access the M.2 2242 SSD (4 screws) if you wanted to swap it out for an NVME drive.
The Realtek RTL8821CE M.2 wifi card is standard equipment for a device in this price range. It’s a single channel wifi card, so network throughput isn’t going to be optimal. Download speeds were okay. I swapped in an Intel AC 9260 I had lying around and saw my network speeds increase. The disassembly/installation was very easy and took me roughly 10 minutes.
The quad core N150 chip is a powerhouse. I ran Cinebench R23, CPU-z, and 3Dmark benchmarks on it. It has roughly the same single core performance as an intel i7-2600K and handedly beats an intel E8500. The 3Dmark scores are about what you’d expect, this is not a gaming machine.
Running the benchmarks gave me an opportunity to stress test the thermals. I didn’t see CPU temperatures exceed 60°C. The fan was barely audible. The unit was warm to the touch, but not exceedingly so. The thermal solution seems well designed for this unit.
The included windows 11 pro operating system setup without issue. It showed as activated on the windows setting screen. I wiped it and re-installed Windows 11 without issue. Finding drivers for the components was easy given the standard hardware used.
Overall, I've been very impressed with this machine. This is my first Aoostar miniPC and I would definitely purchase another. The build quality is top notch and the included features are a great value.
I've been looking for a device to use for a OPNsense router this is perfect and at the right price.
The Aoostar N1 PRO is really well equipped for home office work and as a small home server or entertainment PC for the TV, and there are enough connection options.
The USB-C connection is also praiseworthy, as it offers many possibilities thanks to its full functionality.
If you need more speed for WIFI and Bluetooth, you will definitely have to upgrade here, the same applies to the SSD. Both can be replaced relatively easily.
Personally, I would have liked a slightly newer standard for WIFI. Most users will probably be happy with the options available, however.
The price is really good for what is offered.
